短信登录

提示

黑马点评Redis实战项目: https://www.bilibili.com/video/BV1cr4y1671t

01.基于session实现登录

发送短信验证码

image-20230111194152107

UserController

/**
 * 发送手机验证码
 * @param phone 手机号
 * @param session session
 * @return R
 */
@PostMapping("code")
public Result sendCode(@RequestParam("phone") String phone, HttpSession session) {
    // 发送短信验证码并保存验证码
    return userService.sendCode(phone, session);
}

UserServiceImpl

@Override
public Result sendCode(String phone, HttpSession session) {
    // 1.校验手机号
    if (RegexUtils.isPhoneInvalid(phone)){
        return Result.fail("手机号格式错误!");
    }
    // 2.生成验证码
    String code = RandomUtil.randomNumbers(6);
    // 3.保存验证码
    session.setAttribute("code", code);
    // 4.发送验证码
    log.debug("发送短信验证码成功，验证码: {}", code);

    return Result.ok();
}

实现登录注册功能

image-20230111194206476

UserController

/**
 * 登录功能
 * @param loginForm 登录参数，包含手机号、验证码；或者手机号、密码
 * @param session session
 * @return R
 */
@PostMapping("/login")
public Result login(@RequestBody LoginFormDTO loginForm, HttpSession session){
    // 实现登录功能
    return userService.login(loginForm, session);
}

UserServiceImpl

@Override
public Result login(LoginFormDTO loginForm, HttpSession session) {
    // 1.校验手机号
    String phone = loginForm.getPhone();
    if (RegexUtils.isPhoneInvalid(phone)){
        return Result.fail("手机号格式错误!");
    }
    // 2.校验验证码
    Object cacheCode = session.getAttribute(SystemConstants.SESSION_CODE);
    String code = loginForm.getCode();
    if (null == cacheCode || !cacheCode.toString().equals(code)){
        return Result.fail("验证码错误");
    }
    // 3.根据手机号查询用户
    User user = query().eq("phone", phone).one();
    // 4.判断是否存在
    if (null == user){
        // 5.创建新用户
        user = createUserWithPhone(phone);
    }
    // 6.保存用户信息到session
    session.setAttribute(SystemConstants.SESSION_USER, user);
    log.info("用户登陆成功: {}", user.getPhone());
    return Result.ok();
}

private User createUserWithPhone(String phone) {
    User user = new User();
    user.setPhone(phone);
    user.setNickName(SystemConstants.USER_NICK_NAME_PREFIX + RandomUtil.randomString(10));
    save(user);
    return user;
}

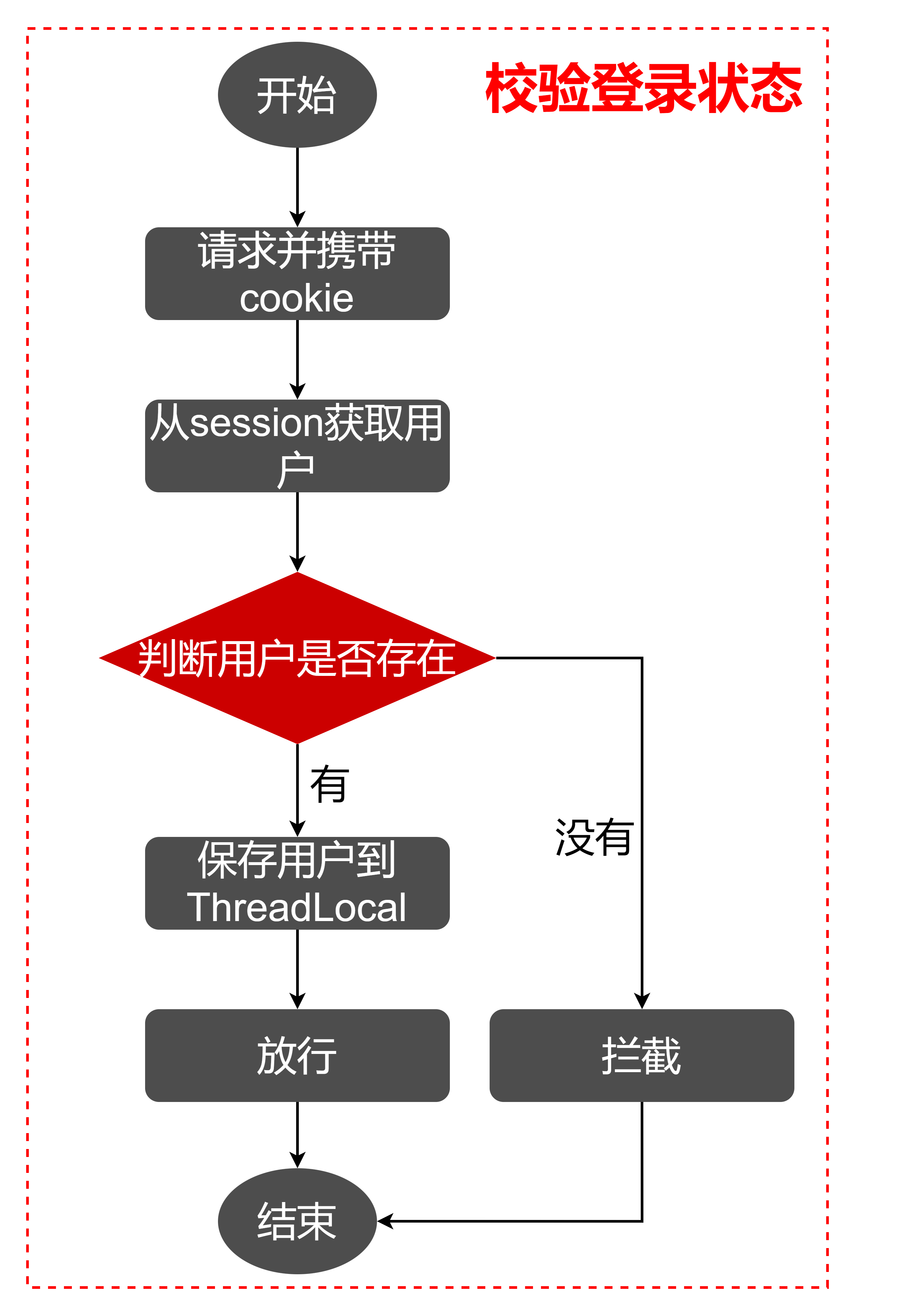

校验登录状态

实现登录校验拦截器：

image-20230111195021513

LoginInterceptor

public class LoginInterceptor implements HandlerInterceptor {
    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        // 1.获取session
        HttpSession session = request.getSession();
        // 2.获取用户
        Object user = session.getAttribute(SystemConstants.SESSION_USER);
        // 3.判断用户是否存在
        if (null == user){
            response.setStatus(401);
            return false;
        }
        User loginUser = (User) user;
        UserHolder.saveUser(BeanUtil.copyProperties(loginUser, UserDTO.class));
        return true;
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        UserHolder.removeUser();
    }
}

WebMvcConfig

@Configuration
public class WebMvcConfig implements WebMvcConfigurer {

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(new LoginInterceptor())
                .excludePathPatterns(
                        "/user/code",
                        "/user/login",
                        "/blog/hot",
                        "/shop/**",
                        "/shop-type/**"
                );
    }

}

session共享的问题分析

多台Tomcat并不共享session存储空间，当请求切换到不同tomcat服务时导致数据丢失的问题。

session的替代方案应该满足：

• 数据共享。
• 内存存储。
• key、value结构。

02.基于Redis实现短信登录

image-20230111204343953

短信登录

UserController

/**
 * 登录功能
 * @param loginForm 登录参数，包含手机号、验证码；或者手机号、密码ession
 * @return R
 */
@PostMapping("/login")
public Result login(@RequestBody LoginFormDTO loginForm){
    // 实现登录功能
    return userService.login(loginForm);
}

UserServiceImpl

@Override
public Result login(LoginFormDTO loginForm) {
    // 1.校验手机号
    String phone = loginForm.getPhone();
    if (RegexUtils.isPhoneInvalid(phone)){
        return Result.fail("手机号格式错误!");
    }
    // 2.从Redis获取并校验验证码
    String cacheCode = stringRedisTemplate.opsForValue().get(RedisConstants.LOGIN_CODE_KEY + phone);
    String code = loginForm.getCode();
    if (null == cacheCode || !cacheCode.equals(code)){
        return Result.fail("验证码错误");
    }
    // 3.根据手机号查询用户
    User user = query().eq("phone", phone).one();
    // 4.判断是否存在
    if (null == user){
        // 5.创建新用户
        user = createUserWithPhone(phone);
    }
    // 6. 保存用户信息到Redis
    // 6.1 随机生成token
    String token = UUID.randomUUID().toString(true);
    // 6.2 将User对象转为HashMap存储
    UserDTO userDTO = BeanUtil.copyProperties(user, UserDTO.class);
    // Long转为String
    Map<String, Object> userMap = BeanUtil.beanToMap(userDTO, new HashMap<>(1),
            CopyOptions.create()
                    .setIgnoreNullValue(true)
                    .setFieldValueEditor((name, value)-> value.toString()));
    // 6.3存储
    String tokenKey = RedisConstants.LOGIN_USER_KEY + token;
    stringRedisTemplate.opsForHash().putAll(tokenKey, userMap);
    stringRedisTemplate.expire(tokenKey, RedisConstants.LOGIN_USER_TTL, TimeUnit.MINUTES);
    log.info("用户登陆成功: {}", user.getPhone());
    // 7.返回token
    log.info("返回信息: {}", Result.ok(token));
    return Result.ok(token);
}

private User createUserWithPhone(String phone) {
    User user = new User();
    user.setPhone(phone);
    user.setNickName(SystemConstants.USER_NICK_NAME_PREFIX + RandomUtil.randomString(10));
    save(user);
    return user;
}

登录拦截器

RefreshTokenInterceptor

public class RefreshTokenInterceptor implements HandlerInterceptor {

    private final StringRedisTemplate stringRedisTemplate;

    public RefreshTokenInterceptor(StringRedisTemplate stringRedisTemplate) {
        this.stringRedisTemplate = stringRedisTemplate;
    }

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) {
        // 1.获取气请求头中的token
        String token = request.getHeader(SystemConstants.AUTHORIZATION);
        if (StrUtil.isBlank(token)) {
            return true;
        }
        // 2.从Redis获取用户
        String tokenKey = RedisConstants.LOGIN_USER_KEY + token;
        Map<Object, Object> userMap = stringRedisTemplate.opsForHash().entries(tokenKey);
        // 3.判断用户是否存在
        if (userMap.isEmpty()){
            return true;
        }
        // 4.用户信息存入ThreadLocal
        UserDTO userDTO = BeanUtil.fillBeanWithMap(userMap, new UserDTO(), false);
        UserHolder.saveUser(userDTO);
        // 5.刷新token
        stringRedisTemplate.expire(tokenKey, RedisConstants.LOGIN_USER_TTL, TimeUnit.MINUTES);

        return true;
    }

    @Override
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) {
        UserHolder.removeUser();
    }
}

LoginInterceptor

public class LoginInterceptor implements HandlerInterceptor {

    @Override
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) {
        // 判断是否需要拦截
        if (UserHolder.getUser() == null){
            response.setStatus(401);
            return false;
        }

        return true;
    }

}

WebMvcConfig

@Configuration
public class WebMvcConfig implements WebMvcConfigurer {

    @Resource
    private StringRedisTemplate stringRedisTemplate;

    @Override
    public void addInterceptors(InterceptorRegistry registry) {
        // 登录拦截器
        registry.addInterceptor(new LoginInterceptor())
                .excludePathPatterns(
                        "/user/code",
                        "/user/login",
                        "/blog/hot",
                        "/shop/**",
                        "/shop-type/**"
                ).order(1);

        // token刷新拦截器
        registry.addInterceptor(new RefreshTokenInterceptor(stringRedisTemplate))
                .order(0);
    }

}

退出登录

清除Redis中的登录用户信息。

UserController

@PostMapping("/logout")
public Result logout(HttpServletRequest request){
    return userService.logout(request);
}

UserServiceImpl

@Override
public Result logout(HttpServletRequest request) {
    String token = request.getHeader(SystemConstants.AUTHORIZATION);
    stringRedisTemplate.delete(RedisConstants.LOGIN_USER_KEY + token);
    log.info("用户退出登录: {}", UserHolder.getUser().getId());
    return Result.ok();
}

Redis代替session需要考虑的问题

• 选择合适的数据结构。
• 选择合适的key。
• 选择合适的存储粒度。
